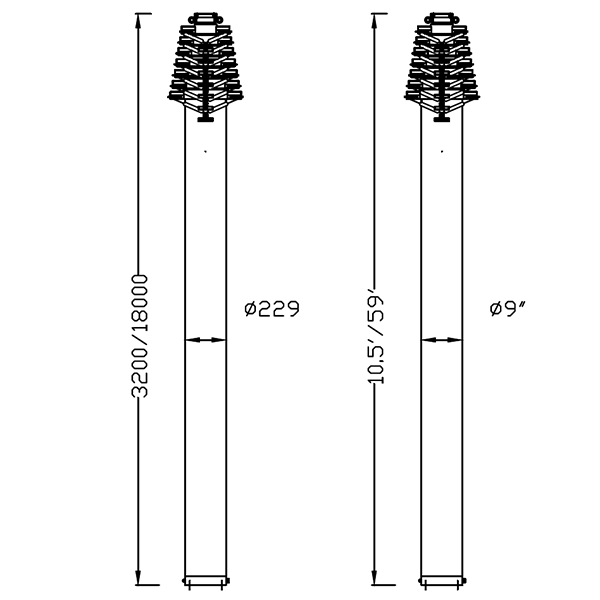

18m Locking Pneumatic Telescopic Mast 100kg payloads

1> Item #: PHT-90108180

2> Extended Height: 100kg max.

3> Extended Height: 18m

4> Retracted Height: 3.2m

5> Working air pressure: 0.2Mpa/29PSI

6> Working temperature: -20~85 Celsius degrees

7> Number of sections: 8 sections

8> Section dia. 82~229mm

9> Materials: Aluminum alloy 6063T5

10> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe.

11> Mast weight: 185kg approx.
