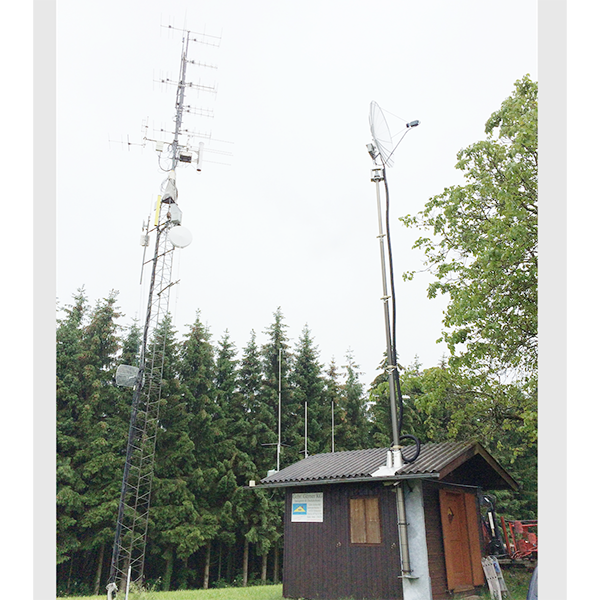

followed picture are customer feedback from Austria.

this mast extend 10m height, 100kg payloads. mast top mount on a 2m diameter dish antenna for 1.2 and 2.3GHz amateur radio application.

the mast can support 100kg payloads max. with locking collars, the mast can work outside long time weekly, monthly, yearly.

1> Model: PHT-90405100

• 2> Extended Height: 10m
• 3> Retracted Height: 2.84m
• 4> Head Loads: 100 kgs
• 5> Working Pressure: 0.2Mpa/29PSI
• 6> Working Temperature: -20~85⁰C (-55~85⁰C available)
• 7> Sections: 5 sections ( Base tube 160mm diameter)
• 8> Mast Weight: 80kgs
• 9> Default Accessories: 1 x Top flange, 1 x  Bottom flange 1 x air hose pipe

Optional Accessories:

• AC 220/50Hz  Puma Brand electric air compressor
• 3x4 guying lines (3 layer 4 ways) with mounting stakes

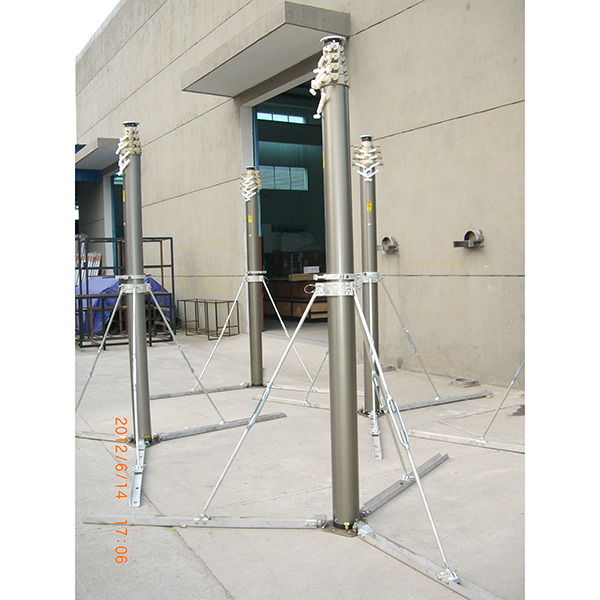

• Ground Mounting Tripod

for 100kg payloads mast, other height 9m, 12m, 15m, 18m, 21m, 25m available
