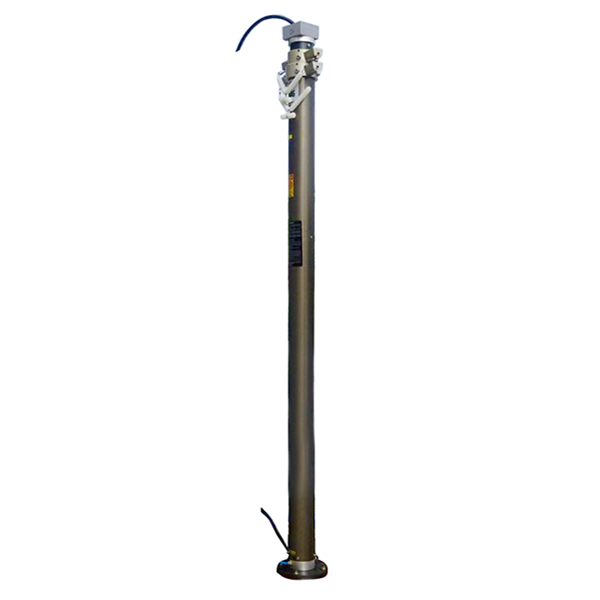

Item #: CCTV-90603060-2 6m Lockable CCTV mast for IP cameras 6m extended, 2.35m retracted, 50kg payloads, vehicle mounted internally wired cables 1xCAT5E + 2x2.5mm + 10x0.5mm mounted inside This model we designed for Australia client for mobile solar CCTV projects. This mast have 3 section with diameter top 82mm, 98mm in middle and 118mm in bottom. The thickness of mast sections are 4mm with two keyways in inner sections. Mast sections are anti rotation, anti corrosion, which are strong enough for normal application. This model is listed as standard model in PHT, which can be ordered directly. Default accessories include one top flange, one bottom flange, one air hose pipe. You should buy air compressor, air control, side mounting, ground mounting tripod.

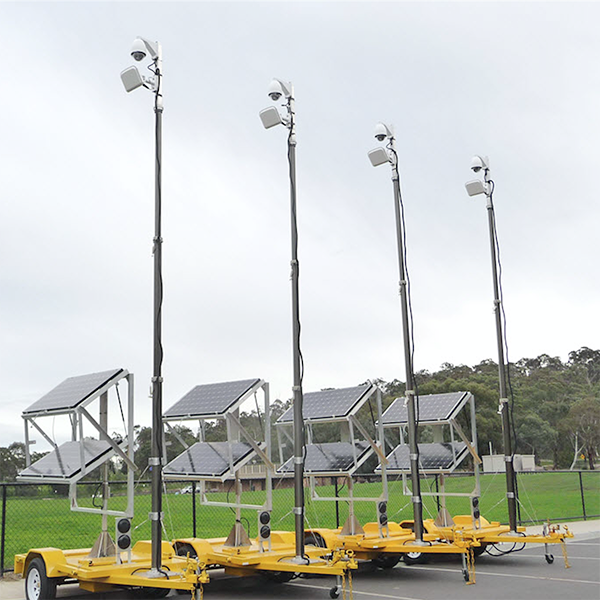

This model we designed for Australia client for mobile solar CCTV projects.

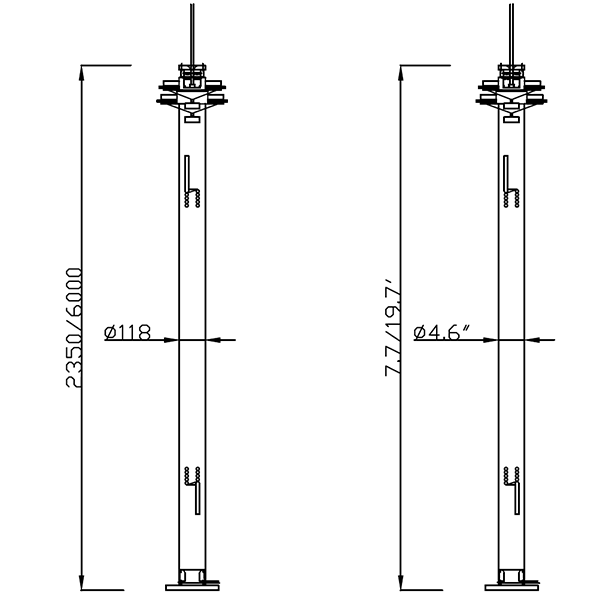

This mast have 3 section with diameter top 82mm, 98mm in middle and 118mm in bottom. The thickness of mast sections are 4mm with two keyways in inner sections. Mast sections are anti rotation, anti corrosion, which are strong enough for normal application. This model is listed as standard model in PHT, which can be ordered directly. Default accessories include one top flange, one bottom flange, one air hose pipe. You should buy air compressor, air control, side mounting, ground mounting tripod.
6m Lockable CCTV mast for IP cameras,internal cable 1xCAT6+ 2x2.5mm + 10x0.5mm
Item #: CCTV-90603060-2

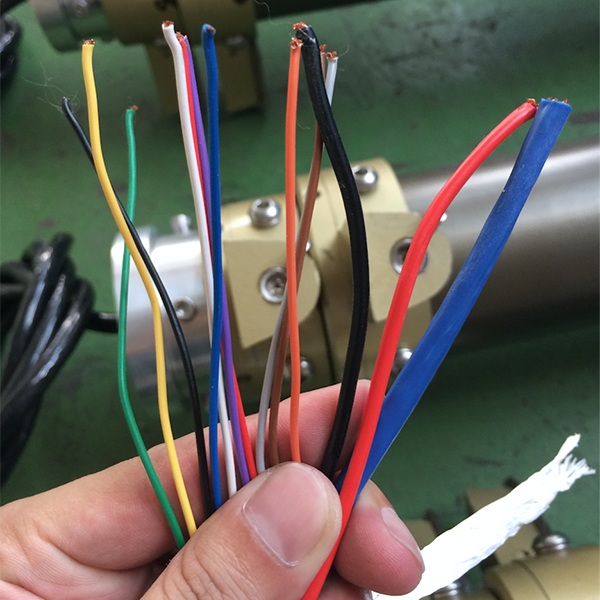

1> Internal cable: 1xCAT5E + 2x2.5mm + 10x0.5mm 2> Maximum Working Pressure: 0.2Mpa 3> Maximum Head Loads: 50kg 4> Retracted Height: 2350mm 5> Extended Height: 6000mm 6> Number of Sections: 3 7> Section Dia. 82mm~118mm 8> Materials: Aluminum Alloy 6063/T5 9> Mast weight: 45kg approx.
