Item #: PHT-HMTS-15
15m Mast Mobile Trailer System
Pneumatic Telescopic Mast 15m height for 150kg payloads, which item #: PHT-90107150

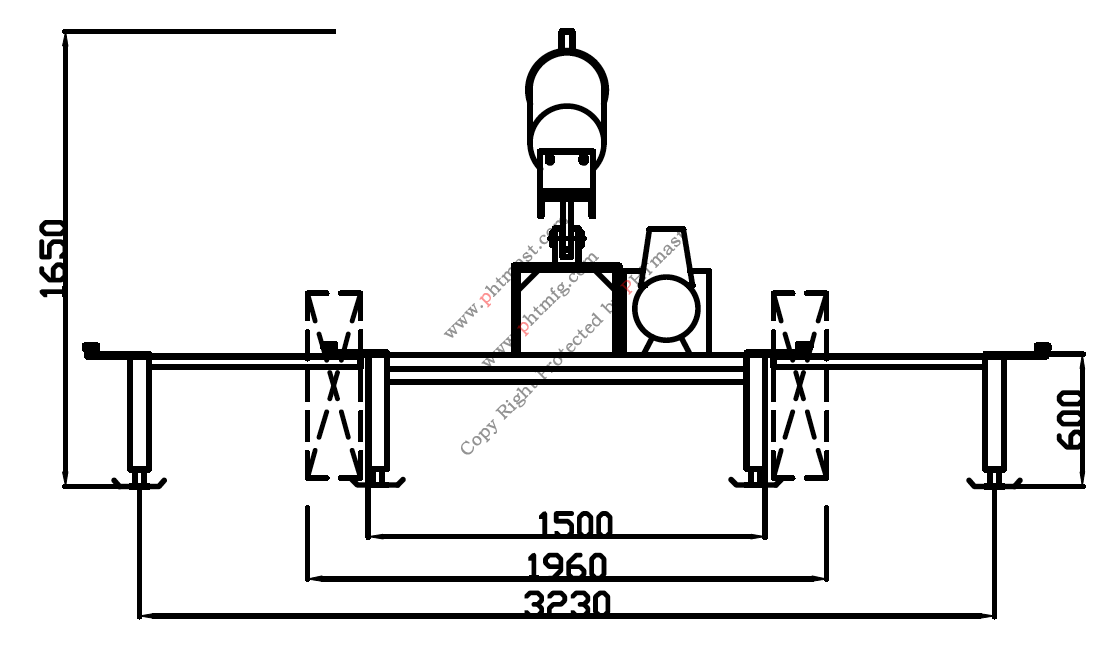

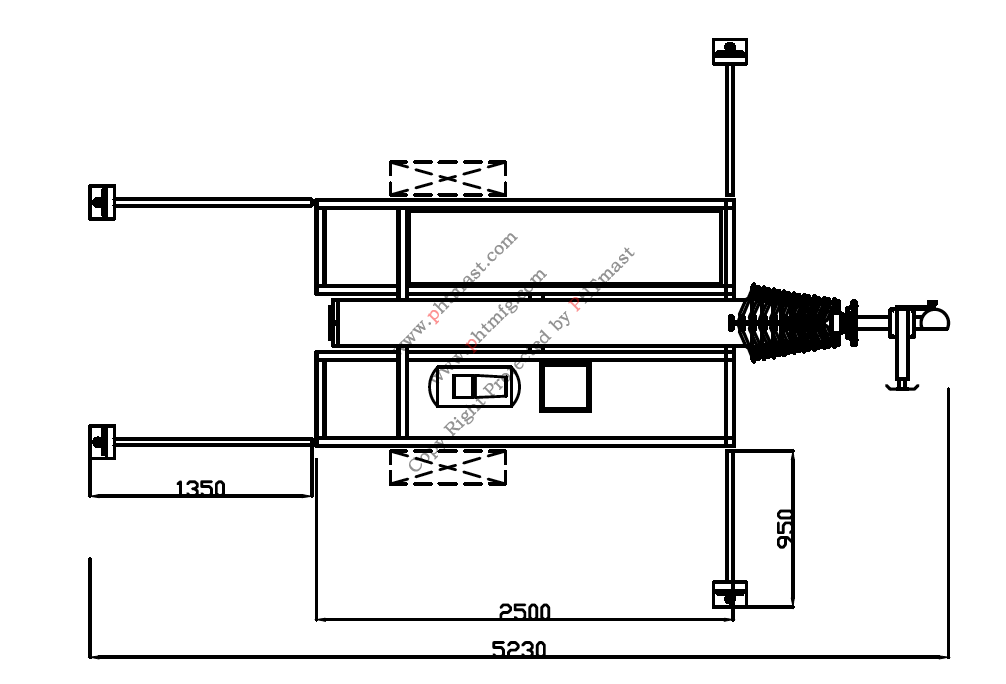

Hydraulic Mobile Trailer System for 15m heavy duty mast lifting from horizontal to vertical.
Electric air compressor for mast extending/retracting

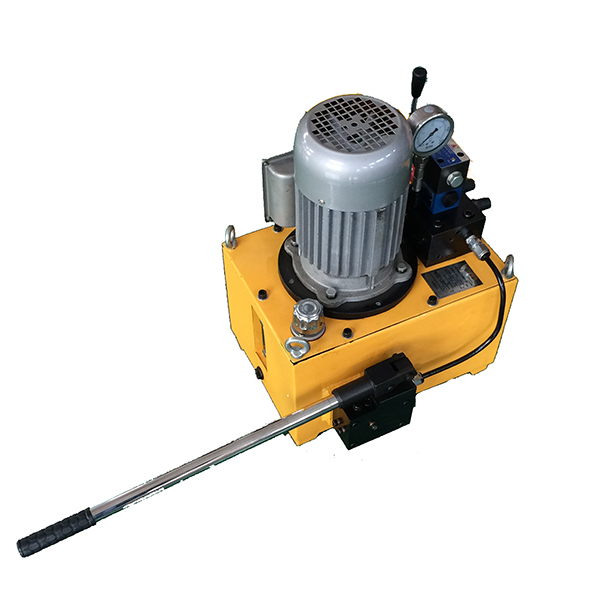

Electric hydraulic control unit and manual hydraulic control combined together.

15m pneumatic telescopic mast specification:

1> Item #: PHT-90107150

2> Extended Height: 15m

3> Retracted Height: 3m

4> Payloads: 150kg max.

5> Working pressure: 0.2Mpa/29PSI

6> Working temperature: -25~85℃

7> Sections: 7

8> Sections dia.: 98mm~229mm

9> Materials: Aluminum alloy 6063T5

10> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 3x4 guying kits

11> Mast weight: 150kg approx.

Hydraulic Trailer Specification:

Hydraulic lifting system: 3 Tons hydraulic cylinder with 750W 220V/50Hz motor with support beam for mast tilt from horizontal to vertical and from vertical to horizontal

(electric motor hydraulic unit with manual operation back up)

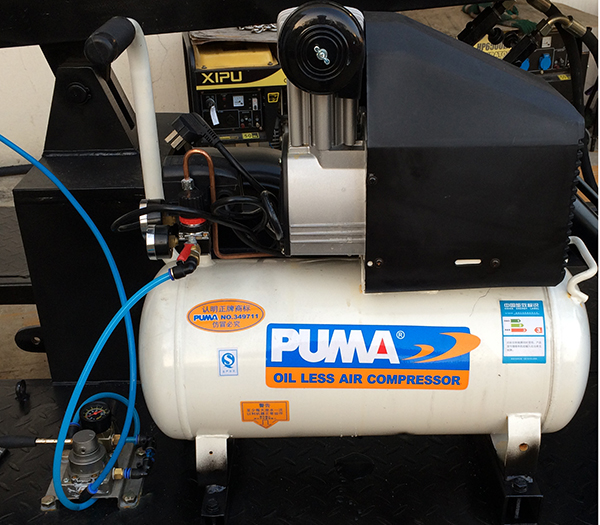

Electric air compressor: PUMA-2025 electric air compressor for mast extending/retracting, air control valve included.
