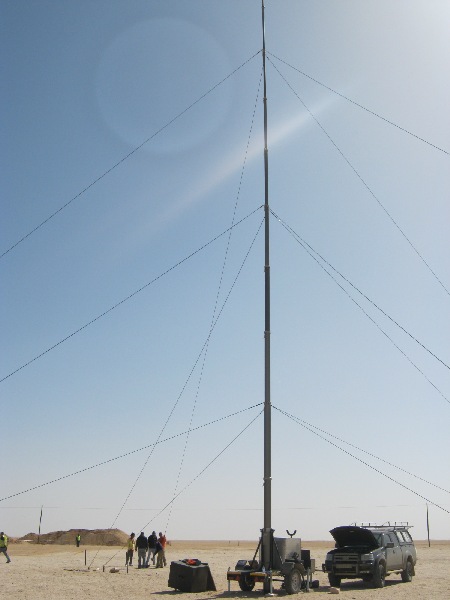

21m Locking Mast-70kgs Head Loads
    Publish time 2012-10-19 10:03
Item#: PHT-90109210 21m LockMast-70kgs Head Loads 9 sections Base section Dia. 229mm

Item#: PHT-90109210

21m LockMast-70kgs Head Loads

9 sections

Base section Dia. 229mm

Product Name:21m Locking Pneumatic Telescopic Masts-70kg Head Loads

1> Item #: PHT-90109210

2> Extended Height: 21m

3> Retracted Height: 3.66m

4> Head Loads: 70 kgs

5> Maximum working pressure: 0.2Mpa/29PSI

6> Working temperature: -55~850C

7> Sections: 9 sections ( Base tube 229mm diameter)

8> Mast Weight: 220kgs approx

9> Default Accessories: 1 x Top flange, 1 x Bottom flange, 1x air hose pipe

Optional Accessories:

3x4 guying lines with stakes

AC 220/50Hz Puma Brand electric air compressor with 80L/m air flow rate

Ground Mounting Tripod

Air Control Valve with Air Filters
