12m Locking Masts-300kg payloads
    Publish time 2014-06-03 13:52
Item #: PHT-90A07120  12m heavy duty locking mast/300kg payloads  2.6m retracted height, 7 sections, 279mm diameter of base sections
12m Locking Masts-300kg payloads

12m Locking pneumatic telescopic mast 300kg payloads

1> Item #: PHT-90A07120

2> Extended Height: 12m

3> Retracted Height: 2.6m

4> Top payloads: 300kg max.

5> Working temperature: -25~85 Celsius Degree

6> Working air pressure: 0.2Mpa/29PSI

7> Number of sections: 7

8> Section dia. 140mm~279mm

9> Materials: Aluminum alloy 6063T5

10> Accessories: 1x top flange,1x bottom flange, 1x air hose pipe

11> Mast weight: 150kg approx.

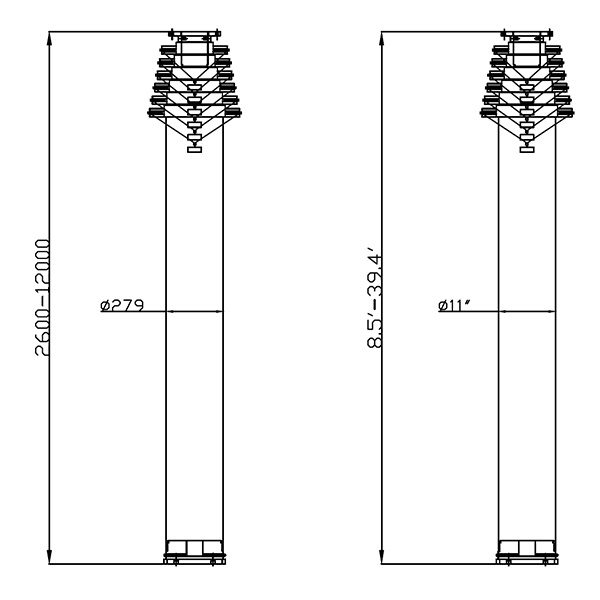

D-90A07120
