15m Telescopic Mast-30kg Payload
    Publish time 2012-10-25 09:33

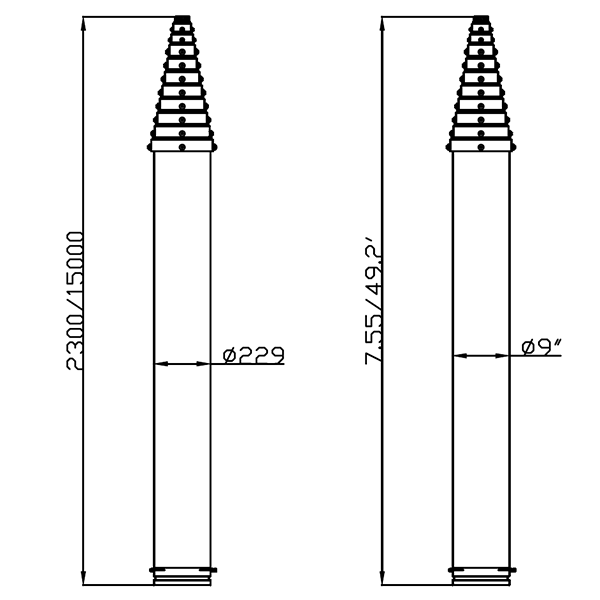

Item #:PHT-80111150 15m Height Pneumatic Telescopic Mast,2.3m Retracted Height 30kg payloads, 11 sections, 229mm of base section dia. 150kg approx. non-lockable collar style, automatic extend and retract by operation, application for temporary activity

15m Pneumatic Telescopic Masts for 30kg Head Load


1>   Item code: PHT-80111150

2>   Extended height: 15m

3>   Retracted height: 2.3m

4>   Maximum head loads: 30kg

5>   Collar style: non-locking collar

6>   Number of sections: 11 sections

7>   Working air pressure: 0.2Mpa/29PSI

8>   Working temperature: -25~85 Deg. C.

9>   Materials: Aluminum alloy 6063T5

10> Mast weight: 152kg approx.

11> Default Accessories: 1x Top flange, 1x Bottom Flange,1x air hose pipes

12> Optional accessories: Guying Ropes 3 layer with 4 ways, electric air compressor, ground mounting tripod, side mounting bracket



Radio Communication Towers, Surveillance Camera Elevation, Sensor Elevation,

Data Gathering, Atmosperic Measurement, Airfield Weather Stations,

Oil Field Exploration, Border Security Appliocation......
