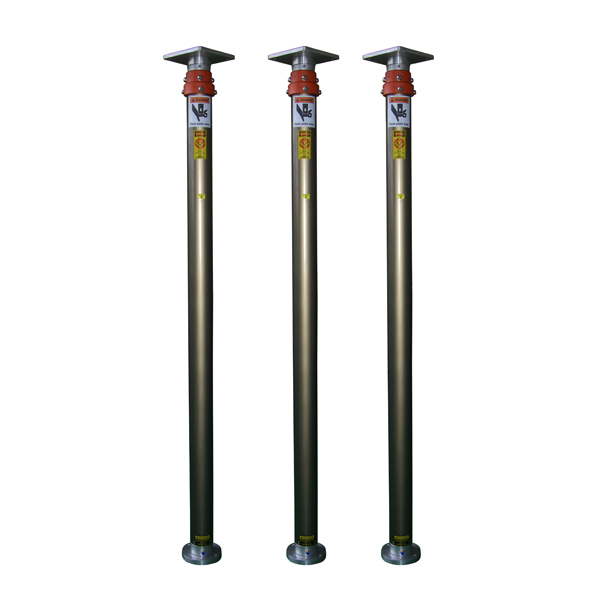

4m Vehicle Mounting Portable Pneumatic Telescopic Masts
    Publish time 2013-03-20 14:02
Item #: PHT-81203040 4m Vehicle Mounting Portable Mobile Pneumatic Mast Square Top Flange, Bottom Flange included

4m Vehicle Mounting Portable Mobile Telescopic Mast

1> Item Code: PHT-81203040

2> Extended Height: 4m

3> Retracted Height: 1.8m

4> Head Loads: 60 kgs

5> Number of Sections: 3

6> Section O.D. Range: 57mm ~ 87mm

7> Materials: Aluminum Alloy 6063/T5

8> Working Temperature: -25~80

9> Round Top Flange, Bottom Flange included.

10> Mast Weight: 16 kgs

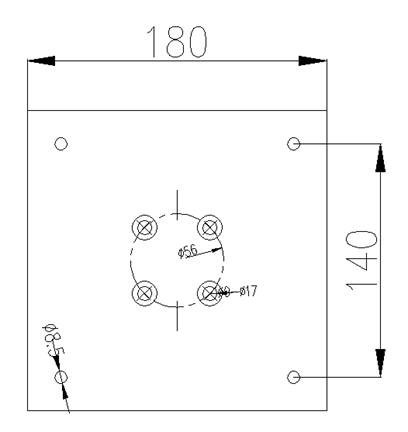

Top Flange Specification             Bottom Flange Specification         Side Mounting Bracket Specification

top flange specification of 81203040Bottom Flange SpecificationSide Mounting Specification
