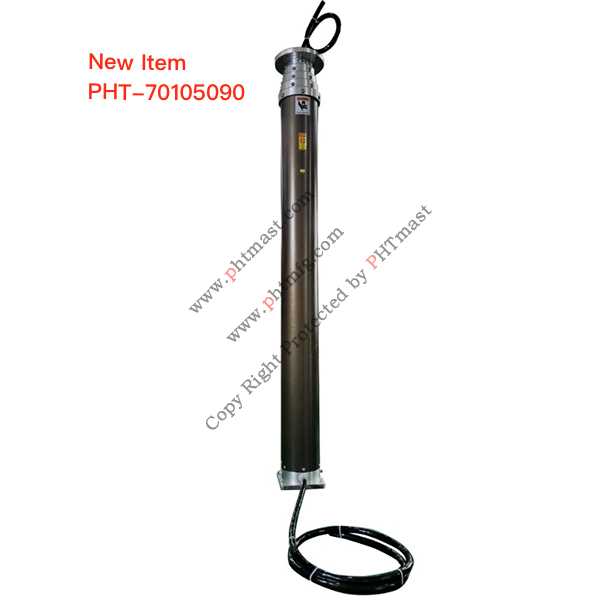

9m Heavy Duty Pneumatic Telescopic Lighting Mast
    Publish time 2017-03-12 10:49
Item #: PHT-70105090  9m Extended Heavy Duty Lighting Mast with electric conductor cables mounted inside.   250kg maximum payloads  2.5m retracted height. Internal spiral cables RVV 12x 2.5 sq.mm cable  5 sections, base section dia. 229mm.  pneumatic driven, aluminum 6063T5 materials, mast weight 150kg
9m Heavy Duty Pneumatic Telescopic Lighting Mast

Product Name: 9m Heavy Duty High Lighting Pneumatic Telescopic Masts

1> Item #: PHT-70105090

2> Extended Height: 9m (29.5 ft)

3> Retracted Height: 2.5m (8.2 ft)

4> Head Load Capacity: 300kg (660 lbs)

5> Working Temperature: 0~650C

6> Working air pressure: 0.15-0.3Mpa

7> Number of sections: 5 sections

8> Base Section Dia. 229mm ( 9.02 in)

9> Internal Spiral Cables: 12x 2.5 mmRVV cables mounted (AWG 13)(Cable parameters according to customers' required)

10> Mast Weight: 150kg (330 lb)

11> Default Accessories: 1x Top Flange, 1x Bottom Flange, 1x air hose pipe

12> Optional: lamps moungting bars, tripod mounting brackets

13> Packing: 1 unit per sea shipping crate box, 280cmL x 45cmW x 55cmH, 180kg approx.
