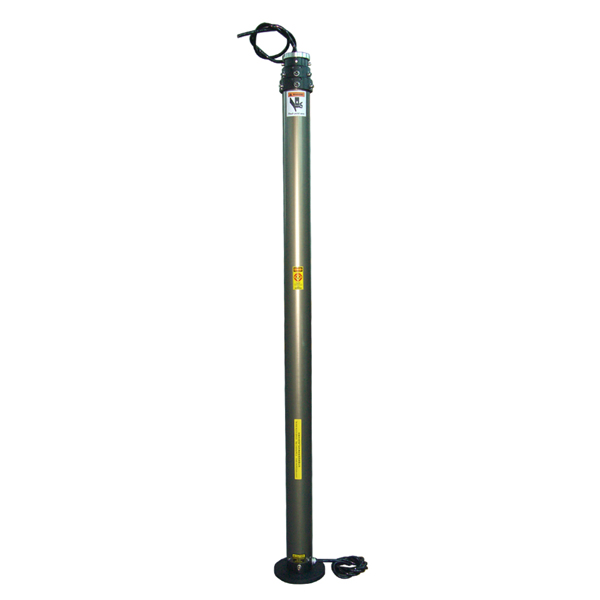

6m CCTV Telescoping Mast
    Publish time 2014-08-01 13:02
Item #: CCTV-70603060 6m CCTV Pneumatic Masts 2.35m Retracted Height RG59 coaxial cable, CAT5E cable, RVV 2x 2.5, 2x1.5 cables mounted inside
6m CCTV Telescoping Mast

6m CCTV Pneumatic Telescopic Masts

CCTV Mast,Security Mast,Camera Mast,Video Mast,Surveillance Mast

1> Item #: CCTV-70603060

2> Internal Spiral Cables: 2x2.5mm2+2x1.5mm2+1xCAT5E cable+1xRG59 Coaxial Video Cable 75 Ohm

3> Extended Height: 6m (19.7 ft)

4> Retracted Height: 2.35m (7.7 ft)

5> Maximum Head Loads: 100kg  (220 lbs) head loads

6> Working air pressure: 0.2Mpa/29PSI

7> Working temperature:-25~850C

8> Number of sections: 3 sections

9> Base section Dia. 118mm (4.65 inch)

10> Materials: Aluminum Alloy 6063/T5

11> Mast Weight: approx. 40kg ( 88 lbs )

12> Accessories: 1x Top flange, 1x bottom flange, 1x air hose pipe

dimension of cctvmasts
