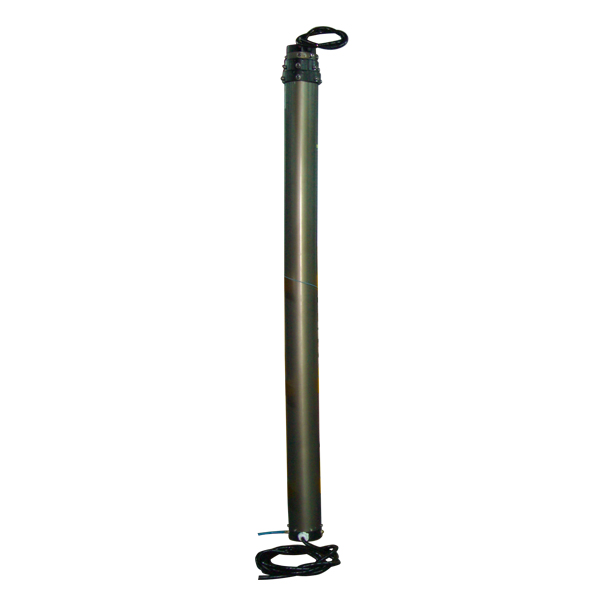

Mobile CCTV Masts with 5 x CAT5 E Internal Cables
    Publish time 2012-11-05 15:11
Item #: CCTV-70403060 6m Extended Height 2.35m Retracted Height, Non-locking Collar Internal Spiral Cables 5x CAT5E Cables
Mobile CCTV Masts with 5 x CAT5 E Internal Cables
6m CCTV Pneumatic Telescopic Masts

CCTV Mast,Security Mast,Camera Mast,Vedio Mast,Surveillance Mast

1> Item #: CCTV-70403060

2> Internal Spiral Cables: 5x CAT5E

3> Extended Height: 6m (19.7 ft)

4> Retracted Height: 2.35m (7.7 ft)

5> Maximum Head Loads: 200kg  (440 lbs) head loads

6> Working air pressure: 0.2Mpa/29PSI

7> Working temperature:-55~850C

8> Number of sections: 3 sections

9> Base section Dia. 160mm (6.3 inch)

10> Materials: Aluminum Alloy 6063/T5

11> Mast Weight: approx. 60kg ( 132 lbs )

12> Accessories: Top flange, bottom flange, air hose pipe

Optional Accessories:

DC 12V electric air compressor

DC24V electric air compressor

AC220~240V, 50/60Hz

Air control panel with air filters

side mounting brackets
