9m CCTV Mast
    Publish time 2014-07-18 14:47
Item #: CCTV-70405090 9m standard Telescopic CCTV mast, 2.5m retracted, 5 sections, 82mm~160mm section dia. mast weight less than 80kg. Internal Spiral Cables for CCTV. Non-lockable collar style, highest air tightness, can keep more than 7 days without external air pressure supply in. Application for CCTV vehicle, security application, fire fighting, .....

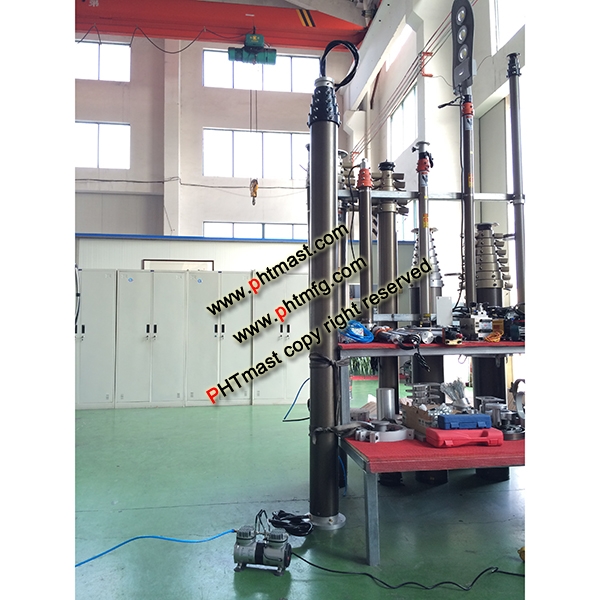

9m CCTV Mast

9m CCTV Pneumatic Telescopic Masts

1> Item #: CCTV-70405090

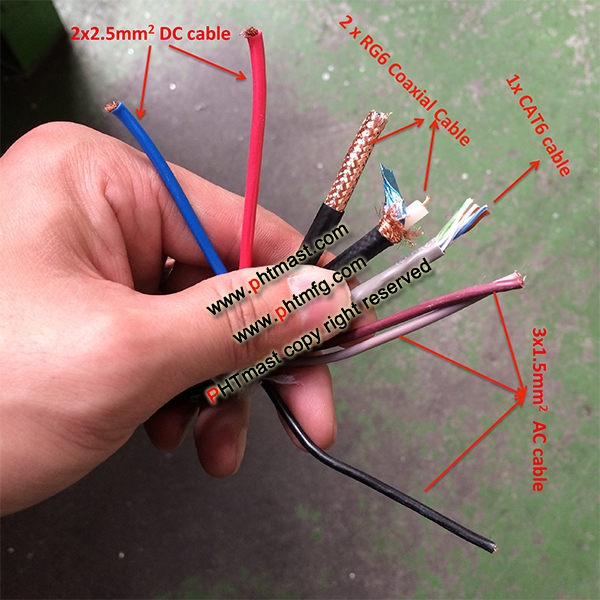

2> Internal Spiral Cables: 3x1.5sq.mm for AC Power+ 2x2.5sq.mm for DC Power + 2x RG6 Video Cable + 1x CAT5E Cable

3> Extended Height: 9m (29.5 ft)

4> Retracted Height: 2.5m (8.2 ft)

5> Maximum Head Loads: 70kg  (154 lbs) head loads

6> Working air pressure: 0.2Mpa/29PSI

7> Working temperature:-20~850C

8> Number of sections: 5 sections

9> Base section Dia. 160mm (6.3 inch)

10> Materials: Aluminum Alloy 6063/T5

11> Mast Weight: approx. 72kg ( 158 lbs )

12> Accessories: Top flange, bottom flange, air hose pipe

Optional Accessories:

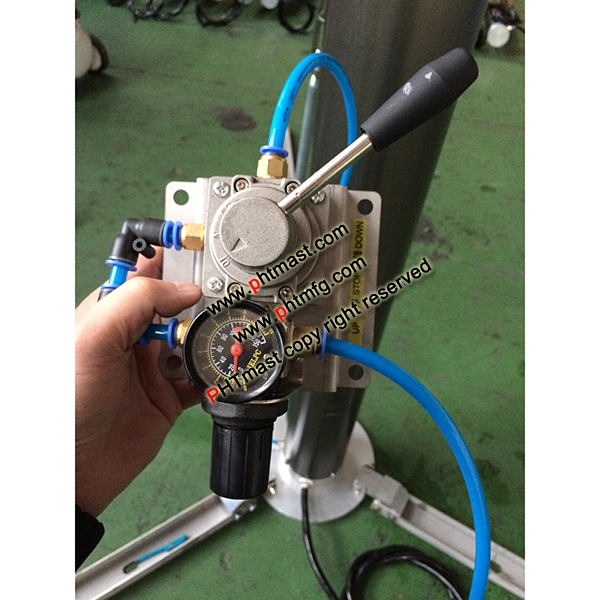

DC 12V electric air compressor,DC24V electric air compressor,AC220~240V, 50/60Hz,Air control panel with air filters,side mounting brackets,tripod ground mounting brackets

Application for CCTV Special
