6m CCTV Locking Mast
    Publish time 2014-03-03 13:36
Item #: CCTV-90603060 6m Locking Telescoping CCTV Mast, 2.35m Retracted, 3 sections, base section dia. 118mm, mast weight 40kg approx. CCTV internal spiral cables mounted. Internal Cables: 2x 2.5mm + 2x 1.5mm + 1x CAT5E + 1x RG 59 (75 Ohm) coaxial video cable
6m CCTV Locking Mast

Specification:

1> Product Name: 6m CCTV Locking Mast

2> Internal Cable:  2x 2.5mm + 2x 1.5mm + 1x CAT5E + 1x RG 59 (75 Ohm) coaxial video cable

3> Item #: CCTV-90603060

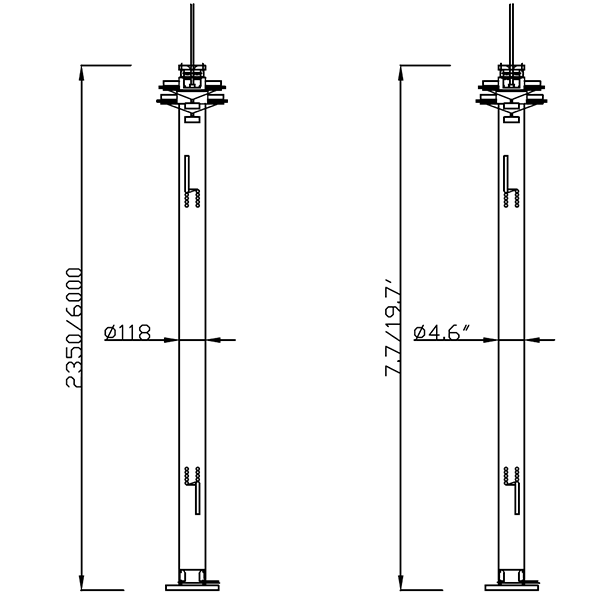

4> Extended Height: 6m

5> Retracted Height: 2.35m

6> Top Head Load: 100kg

7> Collar Style: Lockable

8> Max Working Pressure: 0.25Mpa

9> Number of sections: 3

10> Section Dia.: 82mm, 98mm, 118mm

11> Mast Weight: 40kg approx

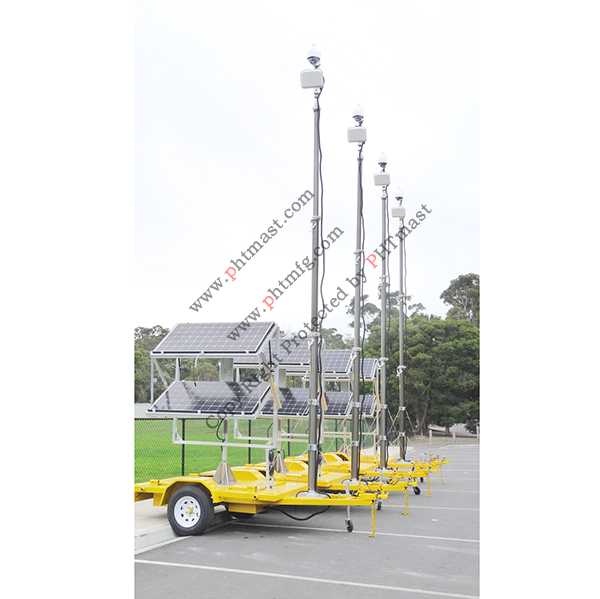

12> Mounting: vehicle mounting, or ground mounting


cctv mast
