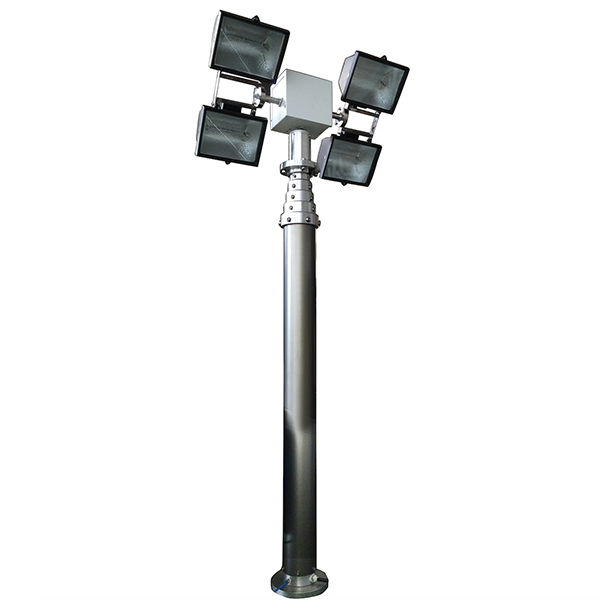

6m mast tower lighting system
    Publish time 2013-09-01 12:20
Item #: PHT-LT-6-4000 6m Pneumatic Telescoping Lighting Tower System 6m Extended Height Pneumatic Mast/1.75m Retracted Height (5 section, base section dia. 140mm) Internally power wires mounted/4x 1000W Halogen Lamps (LED lamps available) Wireless/Wire Remote Control Turn Tilt system (360 degrees in horizontal and vertical) Automatic restore to original position
6m mast tower lighting system

6m Pneumatic Telescopic Lighting Mast System for Fire-Truck

Remote control Pan Tilt Lighting Tower system

Item #: PHT-LT-6-4000

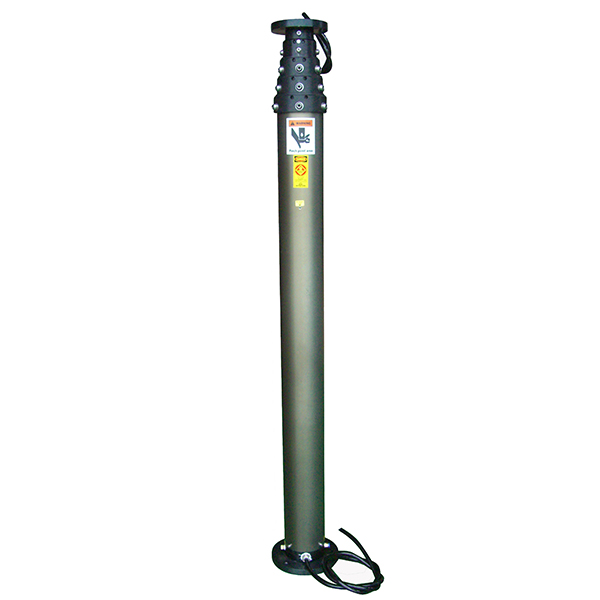

1> Lighting Mast:

     6m extended height pneumatic telescopic mast,

     1.75m retracted height

     internal spiral power cables

     5 sections, section dia. 66mm~140mm

     aluminum alloy materials 6063T5, mast anti-rotation

     work temperature: -25~85 Deg.C

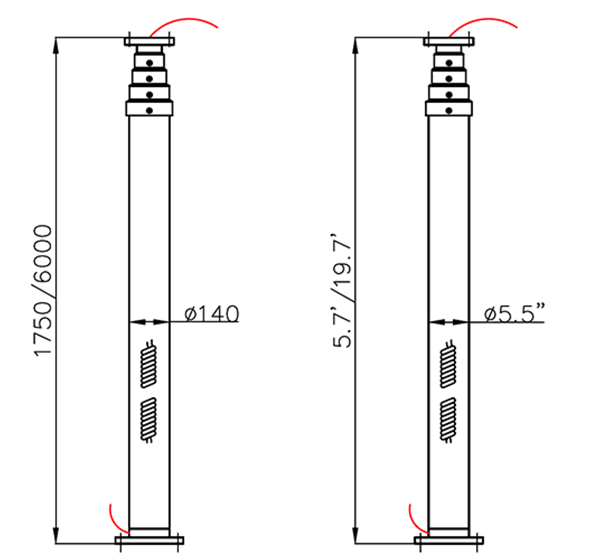

6m lighting mast towermast dimensions

2> Lamps system

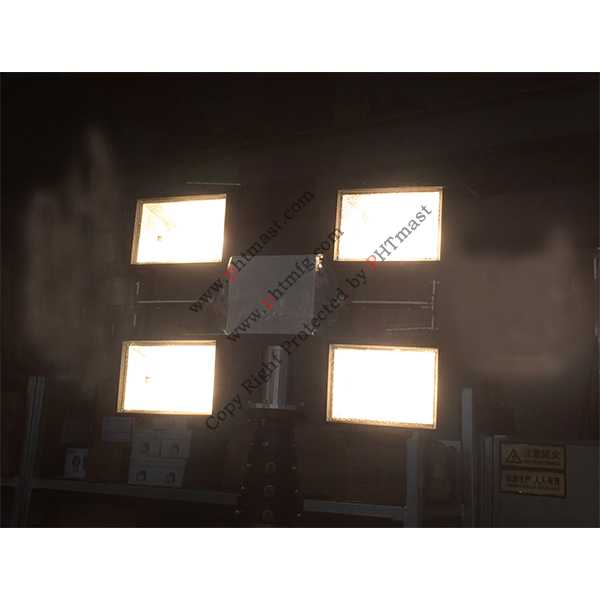

     4 x 1000 W Halogen Lamps (4x120W LED available)

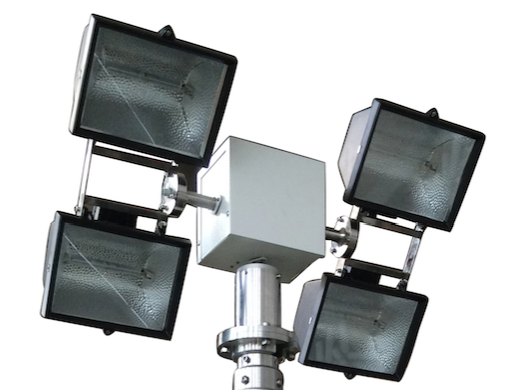

4000W lamps with turn tilt head

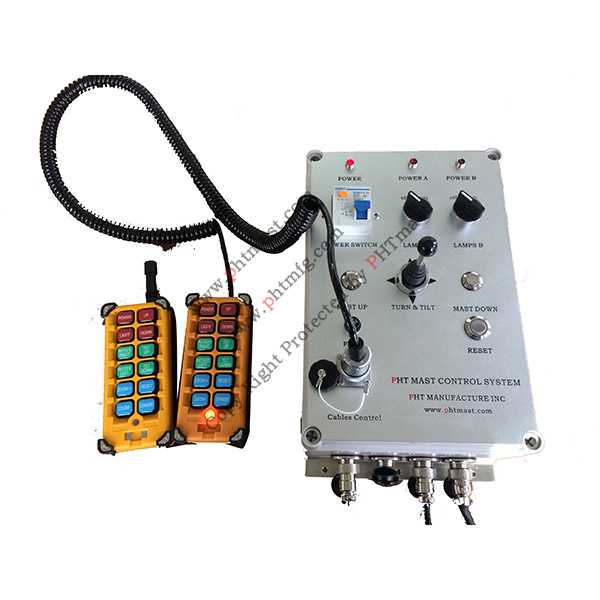

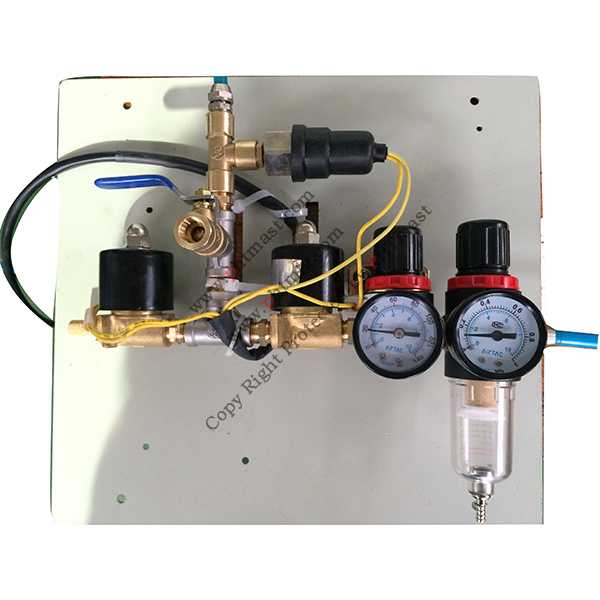

3> Control system:

     Lamps 420 degrees horizontal turn and vertical Tilt by remote control (wire or wireless)

     Mast Extension/ Retraction controlled by control box or remote control panel,

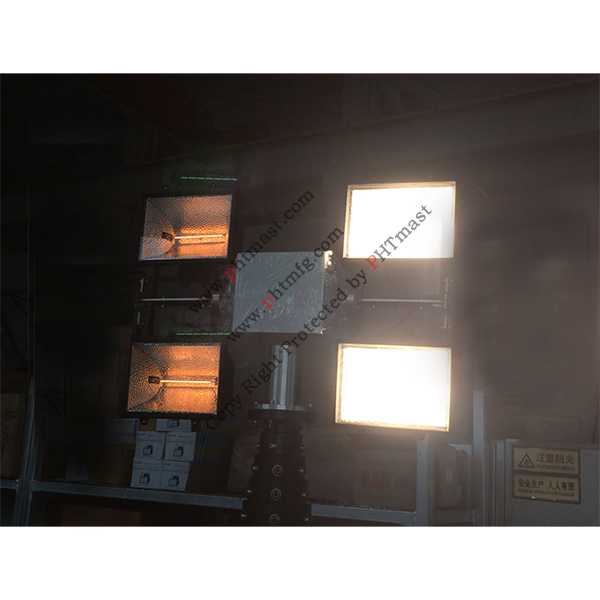

      Lamps light on/ light off by remote control

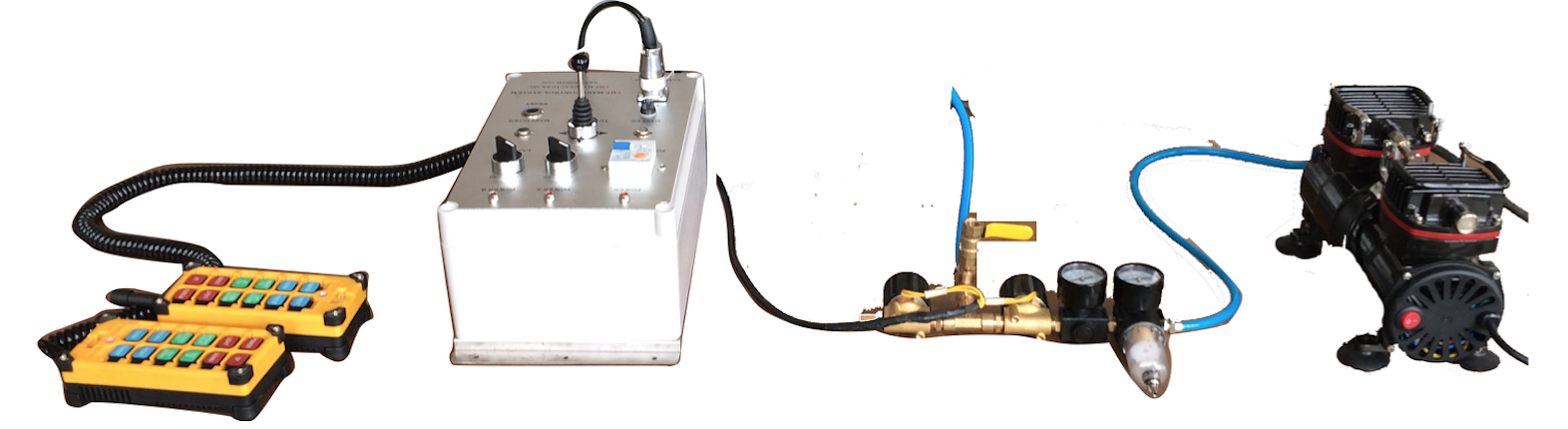

system controls

4> Power Supply: AC 220V/50Hz
