15m Heavy Duty Lighting Mast
    Publish time 2014-10-24 11:17
Item #: PHT-80B07150 400kg head loads, Non-lockable Pneumatic Telescopic Mast, 15m Heavy Duty Lighting Mast,3.3m retracted height, -55~85 Celsius Degrees working condition. Highest air tightness, mast can keep extend height fully with payload more than a week. 7 sections, section tubes have 4-keyways to make the mast more stronger.
15m Heavy Duty Lighting Mast

Item #: PHT-80B07150
400kg head loads, Non-lockable Pneumatic Telescopic Mast, 15m Heavy Duty Lighting Mast,3.3m retracted height, -55~85 Celsius Degrees working condition. Highest air tightness, mast can keep extend height fully with payload more than a week.
7 sections, section tubes have 4-keyways to make the mast more stronger.

Item #: PHT-80B07150

Details Specification:

1> Extended Height: 15m

2> Retracted Height: 3.36m

3> Head Loads: 400kg Max.

4> Maximum Working Pressure: 0.2Mpa/29PSI

5> Working temperature: -55~85 Celcius Degrees

6> Number of sections: 7 sections

7> Section Dia. 160mm~316mm (inner section tube have 4-keyways make the mast stronger)

8> Materials: Aluminum Alloy 6063/T5

9> Default Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe

10> Mast Weight: 350kg

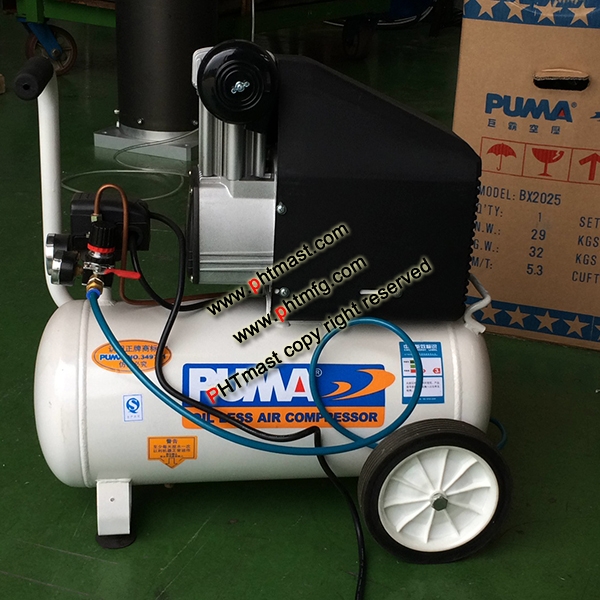

11> Optional Accessories: Guying Ropes(4x4), Electric Air Compressor, Air control Valves
