Item #: PHT-FF-9000 9m Pneumatic Telescopic Masts with Internal Spiral Cables for Lighting. 2.5m Retracted Height 3x150W LED Flood Lights Unit/AC220V/50Hz System control box: control mast extend/retract, lights light on/off

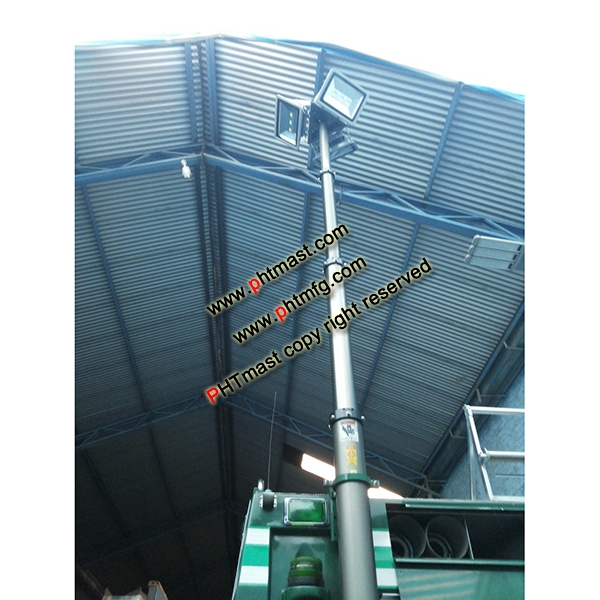

9m Fire-Fighting Truck Mounted Lighting Tower
System include:

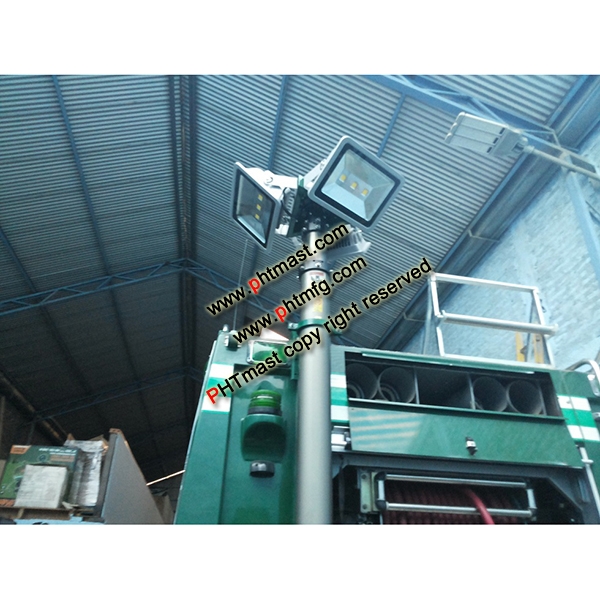

9m Pneumatic Telescopic Masts with Internal Spiral Cables for Lighting. 2.5m Retracted Height 3x150W LED Flood Lights Unit/AC220V/50Hz System control box: control mast extend/retract, lights light on/off
Specification:
Pneumatic Telescopic Masts:
Item #: PHT-70505090
1> Extended Height: 9m
2> Retracted Height: 2.5m
3> Internal Cables: 2x2.5mm 2 +4x1.5mm 2
4> Payloads: 70kg max.
5> Working Pressure: 0.2Mpa/29PSI max.
6> Working Temperature range: Default -25 0 C ~85 0 C (-500 C ~850 C available)
7> Number of sections: 5 sections
8> Section Dia. 66mm~140mm
9> Materials: Anodized Aluminum Alloy 6063T5
10> Default Accessories: 1x top flange, 1x bottom flange, 1 x air hose pipe
11> Mast weight 60kg approx.

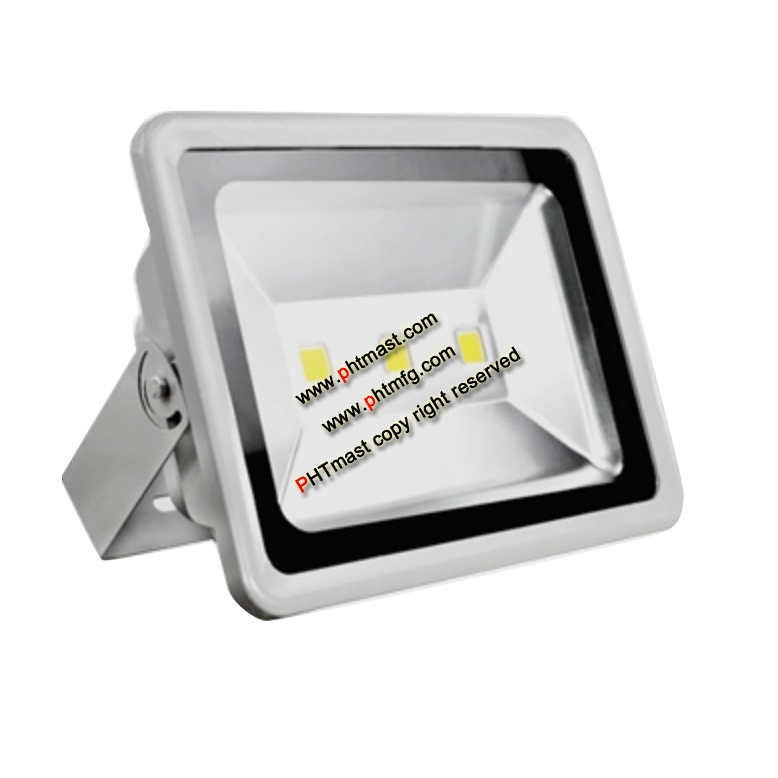

12> LED Flood Lights: 3x150W LED
13> Lighting Tower Mast Control Box: Mast E
