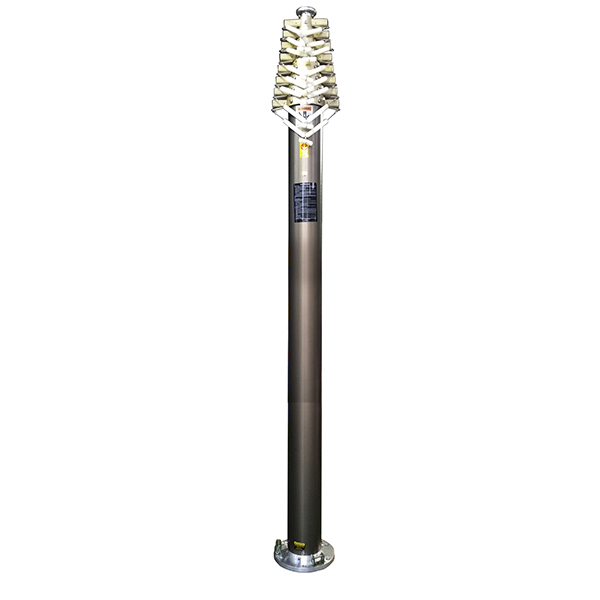

18m Lockable Telescopic Mast
    Publish time 2016-05-27 22:17
Item #: PHT-90309180 18m lockable telescopic masts 30kg payloads, 3.15m retracted height 9 sections, base section dia. 180mm mast weight 130kg approx.
18m Lockable Telescopic Mast

18m Lockable Pneumatic Telescopic Mast

1> Item #: PHT-90309180

2> Extended Height: 18m

3> Retracted Height: 3.15m

4> Head Load Duty: 30kgs Maximum

5> Collar Style: Locking Collar

6> Working air pressure: 0.2MPa/29PSI

6> Working temperature: -25~85 Celsius Degrees

7> Number of Sections: 9 sections

8> Section Tube O.D.: 36mm~180mm

9> Materials: Aluminum alloy 6063T5

10> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe

11> Mast weight: 140kg approx.

12> Optional accessories: electric air compressor, ground mounting tripod, side mounting bracket

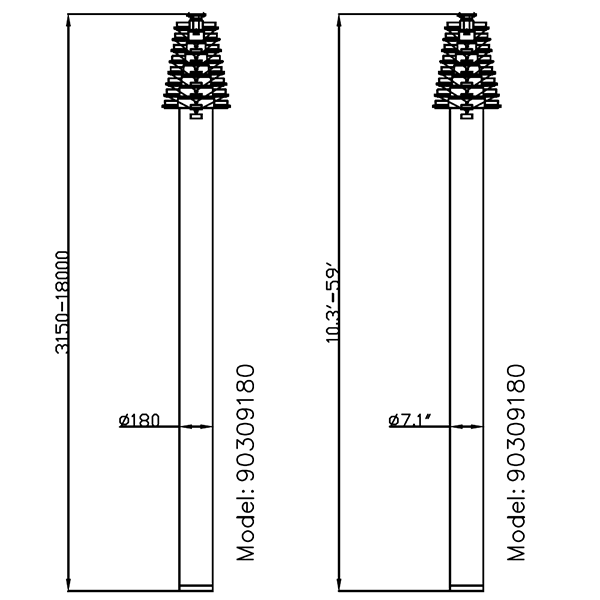

dimension of 18m mast
