Item #: PHT-90A07150
15m locking mast-300kg payloads,
3m retracted/279mm base section/ 330kg approx.
widely used for Mobile Telecom Tower

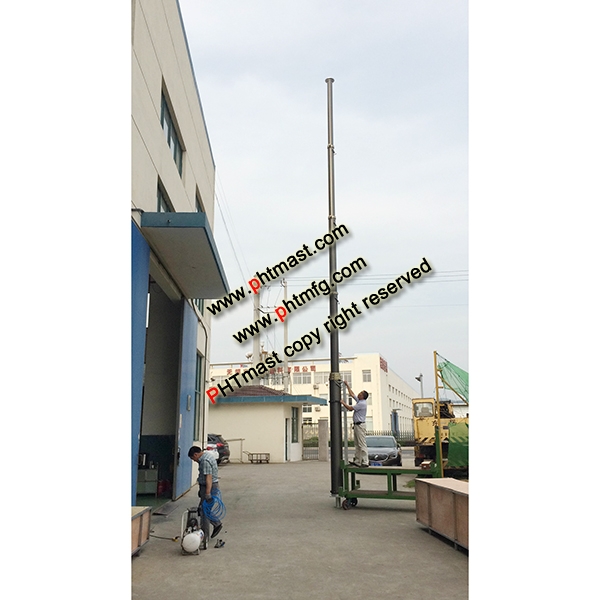

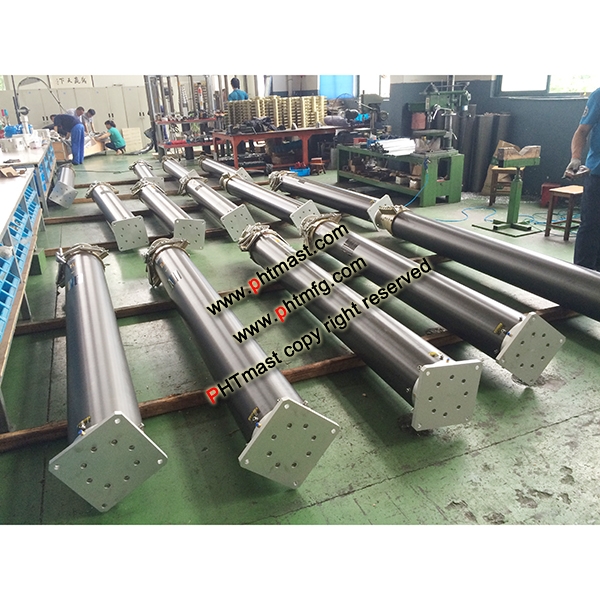

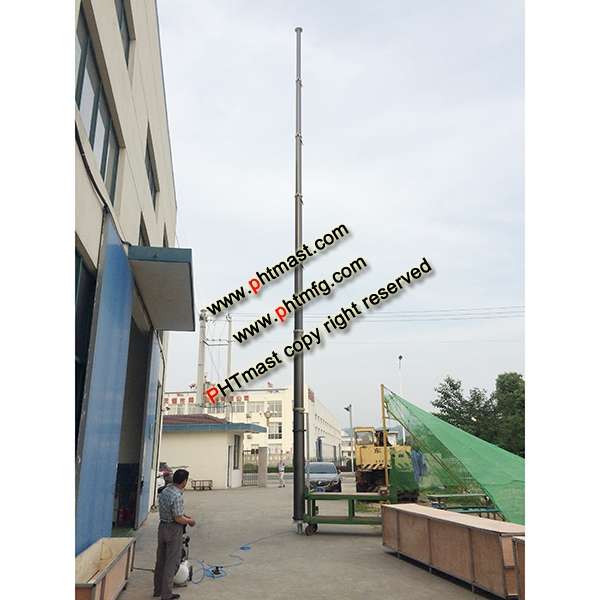

15m Telecom Tower Mast

1> Item #: PHT-90A07150

2> Extended Height: 15m

3> Retracted Height: 3m

4> Payloads:300kg

5> Number of sections: 7

6> Section Dia. range:140mm ~279mm

7> Working air pressure: 0.2Mpa/29PSI

8> Working Temperature: -25~85℃

9> Accessories: 1x Top Flange, 1x Bottom Flange, 1x Air hose pipe

10> Materials: Aluminum Alloy 6063T5 for tubes , pistons, and flanges. Stainless Steels screws and others

11> Mast Weight: 330kg approx.

12> Optional Accessories: Electric air compressor, Air control manual, 3x4 Guying Ropes
