9m Locking Masts
    Publish time 2011-02-26 11:30
Item #: PHT-90606090 Standard 9m lockable telescopic mast,2.2m retracted height, max. 30kg payloads, 6 sections, base section 118mm diameter, mast weight 40kg. This mast can be erected easily by a small electric air compressor or manual pump or foot pump. It also can be equipped an ground mount tripod, make sure the mast work more stable, and move easily. This model is the most economic 9m mast which designed for Iran customer who buy many very year for antenna, lighting, CCTV application. This model is listed as standard model and have stock, so it can be ordered directly. Application: Surveillance Camera Elevation, Temporary Antenna Elevation, Radar Elevation__.
9m Locking Masts

Product Name: 9m Locking Pneumatic Telescopic Mast 30kg Head Loads

1> Item #: PHT-90606090

2> Extended Height: 9m

3> Retracted Height: 2.2m

4> Head Loads: 30 kgs

5> Working Air Pressure: 0.2Mpa/29PSI max.

6> Working Temperature: 0~60 0C

7> Number of Sections: 6 sections

8> Section Dia.: 36mm~118mm

9> Materials: Aluminum Alloy 6063T5

10> Mast Weight: 40kgs

11>Default Accessories: 1 x Top flange, 1 x  Bottom flange,  1x air hose pipe

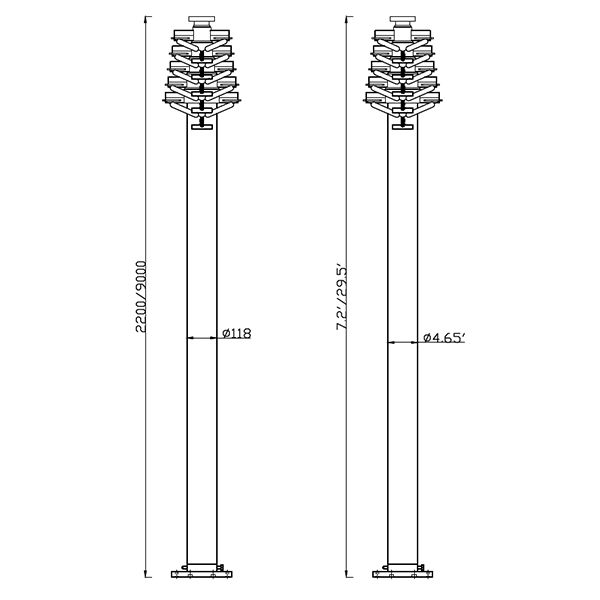

dimension of 90606090

bottom flange specification:                                            Top flange specification:

bottom flangetop flange

Optional Accessories: DC 12V/24V electric Air compressor, AC 220/50Hz 1/5 HP electric air compressor,1x4 guying lines (1 layer 4 ways), Ground Mounting Tripod
