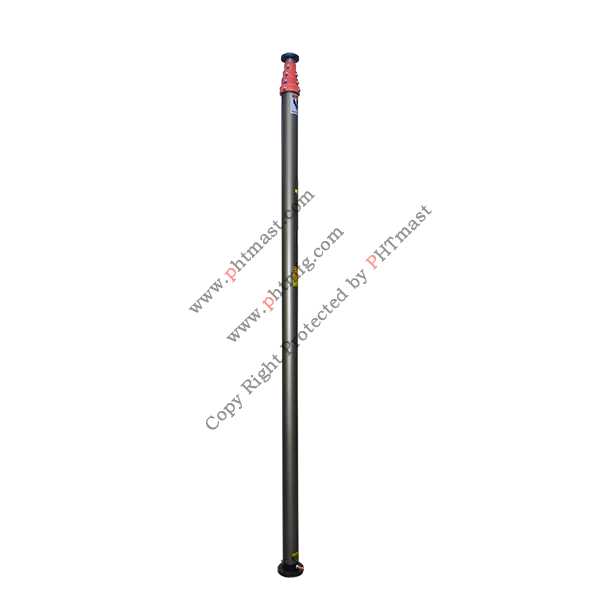

10m Portable Pneumatic Telescopic Mast

1> Item #: PHT-81205100

2> Extended Height: 10m
3> Retracted Height: 2.84m
4> Head Loads: 10kg maximum.

5> Working air pressure: 0.1Mpa/14.9PSI

6> Working Temperature: -25~85 Celsius Degrees

7> Number of sections: 5 sections
8> Section Dia. 28mm~87mm
9> Accessories: Top flange, bottom flange, air hose pipe
10> Materials: Aluminum Alloy 6063/T5
11> Mast weight: 30kg approx.

12> Optional Accessories: foot pump or hand pump, side mounting bracket
