4.5m CCTV Mast
    Publish time 2015-03-27 19:46
Item #: CCTV-70603045 4.5m CCTV mast, 1.8m Retracted Height, non-lockable style, max. 100kg payloads, 3 sections, base section dia. 118mm, top flange, bottom flange included. Internal Spiral Cables for cameras and lightings.
4.5m CCTV Mast

CCTV Mast,Security Mast,Camera Mast,Vedio Mast,Surveillance Mast

1> Item #: CCTV-70603045

2> Internal Spiral Cables: 2x2.5mm2+2x1.5mm2+1xCAT5E cable+1xRG59 Coaxial Video Cable 75 Ohm

3> Extended Height: 4.5m (14.8 ft)

4> Retracted Height: 1.8m (5.9 ft)

5> Maximum Head Loads: 100kg  (220 lbs) head loads

6> Working air pressure: 0.2Mpa/29PSI

7> Working temperature:-25~850C

8> Number of sections: 3 sections

9> Base section Dia. 118mm (4.65 inch)

10> Materials: Aluminum Alloy 6063/T5

11> Mast Weight: approx. 30kg ( 66lbs )

12> Accessories: Top flange, bottom flange, air hose pipe

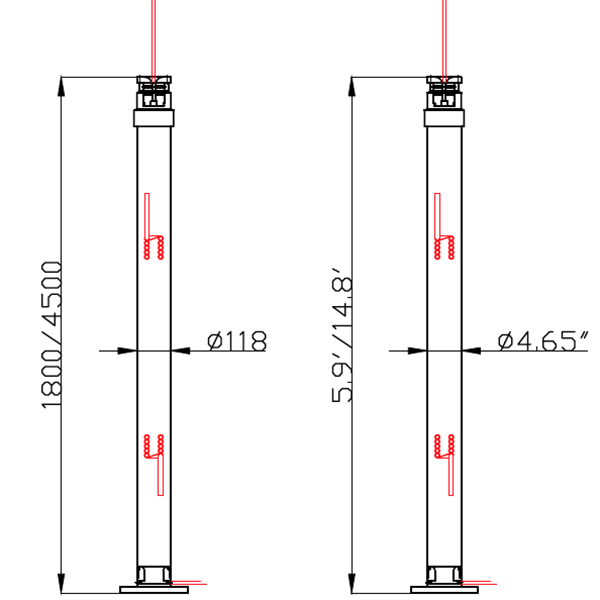

dimension of CCTVmast
